Elan GT6 Specifications

Main Specs
Length, m 15.2
Beam, m 4.49
Draft, m 2.45
Displacement, kg 13000
Classification
Hull Type Monohull
Type by Usage Performance Cruiser
CE Class A - Ocean
Hull Material Fiberglass / GRP
Design Modern / Mainstream
Deck Arrangement With mediterranean cockpit
Rigging and Keel

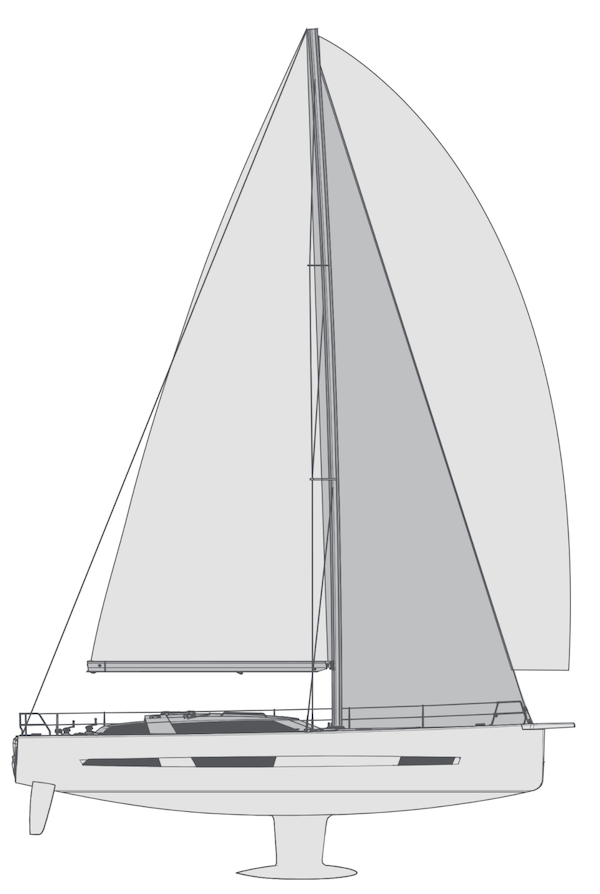

Rig Single-masted (sloop)
Keel Fixed
Sails mainsail (lazy bag) – 63 m² jib ( self-tacking) – 51 m² spinnaker – 153 m²
Cabins & Passenger Capacity
Cabins 2
Berths for Guests 4
Bathrooms 2
Tanks Capacity
Fuel capacity, l 300
Water tank, l 500
Manufacturer Information
Shipyard Elan
Country Slovenia
Series GT-Line
Model GT6
Period of manufacturing 2021 - now
Sailboat Calculations
× Capsize Screening Formula
CSF = Beam ÷ (Disp in cubic ft)^(1/3)
Designed to determine if a boat has blue water capability. The CSF compares beam with displacement since excess beam contributes to capsize and heavy displacement reduces capsize vulnerability. The boat is better suited for ocean passages (vs coastal cruising) if the result of the calculation is 2.0 or less. The lower the better.
Capsize Screening Formula 1.93ℹ️
