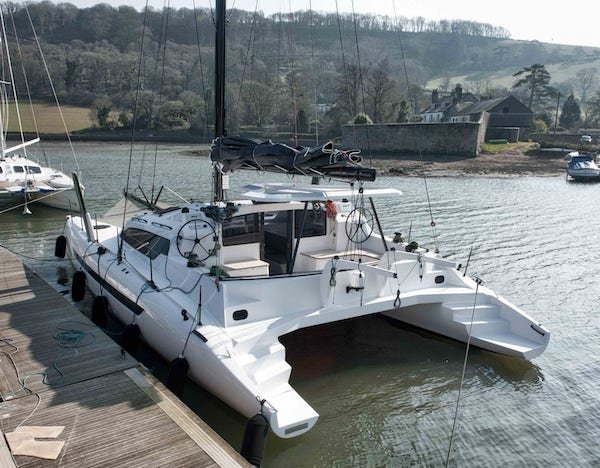

Dazcat 1495 Specifications

Main Specs
Length, m 14.95
Beam, m 7.50
Draft, m 2.75
Displacement, kg 5500.00
Classification
Hull Type Catamaran Twin Dbrd.
Hull Material Composite
Rigging and Keel
Rig Fractional Sloop
Max Draft, m 2.75
Min Draft, m 1.00
Engine
Engine Type Diesel
Engine Model Nanni
Engine Power 2
Manufacturer Information
Shipyard The Multihull Centre
Country UK
Designer Darren Newton
Period of manufacturing 2014 - now
Technical Specs
LOA, m 14.95
Sail Area (S.A.), m² 120.00
Sailboat Calculations
× S.A. / Displacement Formula
SA/D = SA (ft²) ÷ [Disp (lbs) / 64]^0.666
A sail area/displacement ratio below 16 would be considered under powered; 16 to 20 would indicate reasonably good performance; above 20 suggests relatively high performance.
× Capsize Screening Formula
CSF = Beam ÷ (Disp in cubic ft)^(1/3)
Designed to determine if a boat has blue water capability. The CSF compares beam with displacement since excess beam contributes to capsize and heavy displacement reduces capsize vulnerability. The boat is better suited for ocean passages (vs coastal cruising) if the result of the calculation is 2.0 or less. The lower the better.
S.A. / Displacement 39.29ℹ️
Capsize Screening Formula 4.29ℹ️
