C-Cat 37 Specifications
Main Specs
| Length, m | 11 |
| Beam, m | 5.84 |
| Draft, m | 1.3 |
| Displacement, kg | 5000 |
Classification
| Hull Type | Catamaran |
| Type by Usage | Cruiser |
| CE Class | A - Ocean |
| Hull Material | Wood |
| Design | Modern / Mainstream |
| Deck Arrangement | With deck saloon |

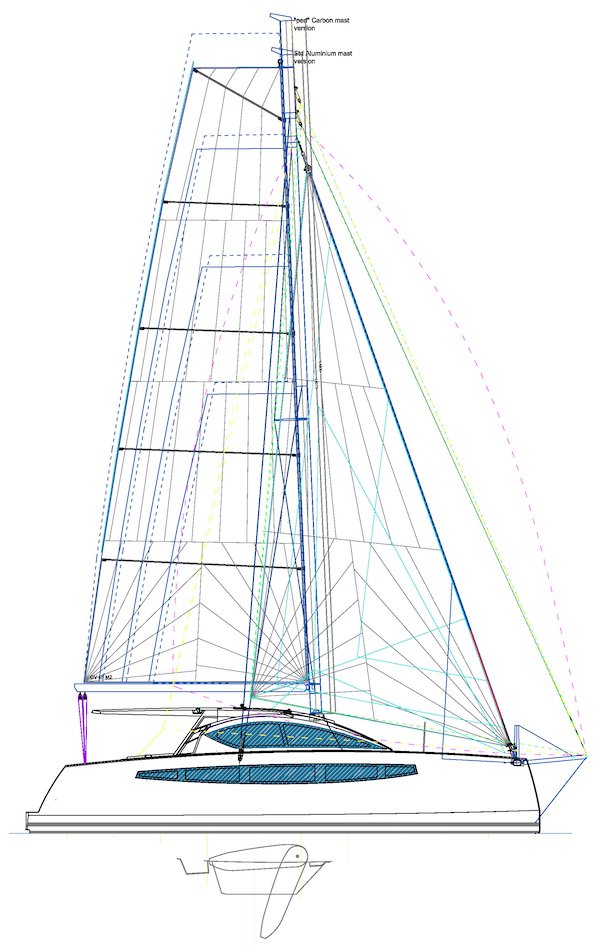

Rigging and Keel
| Rig | Single-masted (sloop) |
| Keel | Fixed |
| Sails | mainsail – 46 m² genoa – 33 m² Code zero – 43 m² gennaker – 56 m² |
Cabins & Passenger Capacity
| Max People on Board | 8 |
| Cabins | 2 |
| Berths for Guests | 4 |
| Bathrooms | 2 |
Tanks Capacity
| Fuel capacity, l | 182 |
Manufacturer Information
| Shipyard | C-Catamarans |
| Country | Italy |
| Series | Cat |
| Model | 37 |
| Period of manufacturing | 2015 - now |
Sailboat Calculations
Capsize Screening Formula
CSF = Beam ÷ (Disp in cubic ft)^(1/3)
Designed to determine if a boat has blue water capability. The CSF compares beam with displacement since excess beam contributes to capsize and heavy displacement reduces capsize vulnerability. The boat is better suited for ocean passages (vs coastal cruising) if the result of the calculation is 2.0 or less. The lower the better.
CSF = Beam ÷ (Disp in cubic ft)^(1/3)
Designed to determine if a boat has blue water capability. The CSF compares beam with displacement since excess beam contributes to capsize and heavy displacement reduces capsize vulnerability. The boat is better suited for ocean passages (vs coastal cruising) if the result of the calculation is 2.0 or less. The lower the better.
| Capsize Screening Formula | 3.45 |
